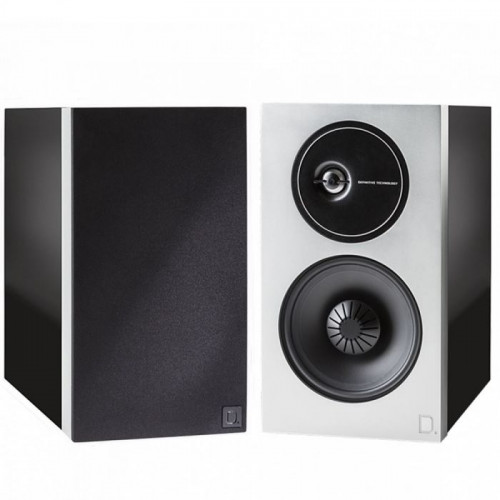

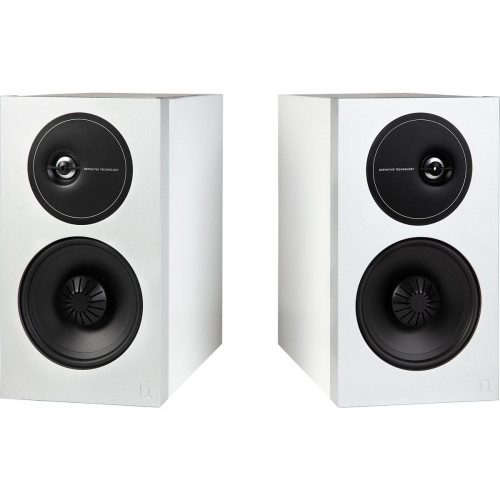

Definitive Technology Demand D9 Raf Tipi Hoparlör

High-Performance Bookshelf Speakers

Qty Included Pair

Orientation Vertical

Height 11.71" (29.74 cm)

Width 6.5" (16.51 cm)

Depth 11.97" (30.4 cm)

Driver Enclosure Type MDF cabinet with extruded natural bead-blasted aluminum front baffle

Driver Complement • (1) 5.25" (13.34 cm) d (Round) Polypropylene BDSS Bass - Mid/Woofer

• (1) 1" (2.54 cm) d (Round) Annealed Aluminum Dome and Laterally Offset - Tweeter

• (1) 5" (12.7 cm) h x 9" (22.86 cm) w (Oval) Passive - Bass Radiator

Total Frequency Response 48 Hz → 24,000 Hz

Nominal Impedance 4 ohms

Sensitivity (1 watt @ 1 meter) 88 dB

Lower and Upper -3dB Limits 64 Hz → 22,000 Hz

Audio Inputs

Speaker Inputs (1) (Set) 5-Way Binding Posts - Gold Plated

Mounting Type 1/4 in - 20 Threaded Insert

Available Orientations Vertical

Mounting Location Bottom of Speakers

Mounting Type

Available Orientations Vertical

Recommended Amplifier Power Per Channel 20 watts → 150 watts

AV Receiver Crossover Settings Small (80 Hz)
