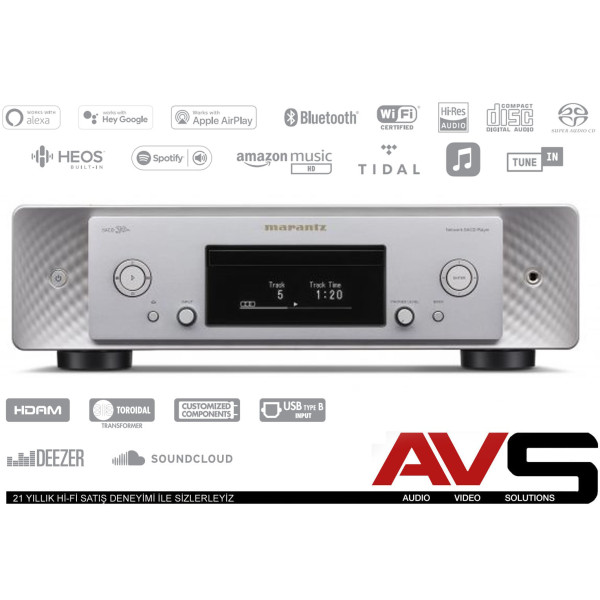

Marantz SACD 30N Network Cd Player Teknik Özellikleri

AirPlay 2 o

Amazon Prime Music* / Pandora* o / o

Asynchronous mode rear USB-B o

Bit-perfect transmission o

CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC o / o / o / o / o / -

CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data - / o / o / o / -

Copper plated chassis -

Customised Components o

DAC operation mode: USB-B / Coax / Optical o / o / o

Data Disc Compatibility: DSD / WAV / ALAC o / o / o

Digital out off / Audio EX Mode o / -

Extra metal plate for chassis strengthing o (1.5mm)

HDAM version HDAM+HDAM SA3

Headphone: Standard / Buffer / Current feedback - / - / o (HDAM SA2)

HEOS Multiroom and Streaming o

High Grade Audio Components o

Internet radio tunein

Jitter Reducer o

Network audio streaming o

Power Transformer: Toroidal / El o / -

Roon Tested o

Signal isolator for DAC Mode operation o

Spotify Connect* / Tidal* / Deezer* / others * o / o / o / o

Symmetric circuit layout o

USB input for memory stick o

USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2 o / o / o

Voice Control - Google Assist / Apple Siri o / o

Voice Control - Microphone built-in -

Voice Control - Works with Amazon Alexa o

General

Auto power off o

Available colors: Gold / Silver / Black / Silver-Gold - / - / o / o

Carton Maximum Dimensions (W x D x H) in mm 534 x 522 x 255

Carton Weight (inc. product) in kg 16.2

Detachable Power Cable o

Maximum Dimensions (W x H x D) in mm 443 x 424 x 130

Metal Front Panel o

Power Consumption in W 48

Remote Control RC002PMND

Standby Consumption in W 0.4

Weight in kg 13.5

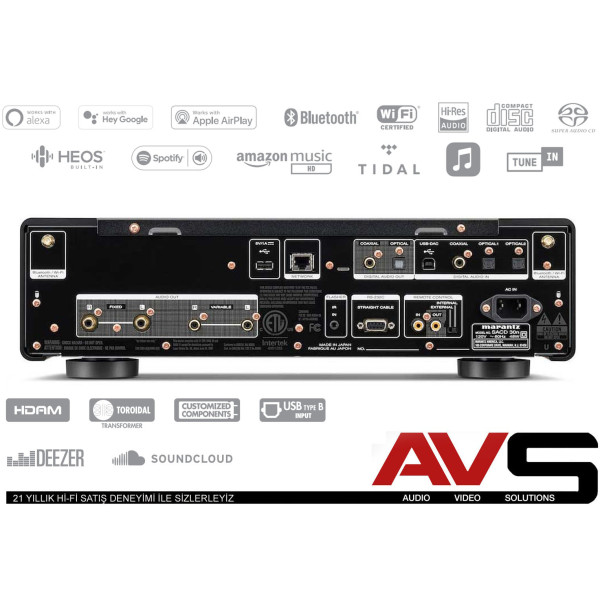

Inputs/Outputs

Analogue Out (Cinch) 1

Balanced Out -

D-Bus o

Digital Coaxial In / Out 2 / 1

Digital Optical In / Out 1 / 1

Ethernet port o

Flasher input o

Gold Plated Cinch o

Headphone Out o

Headphone Volume Control o

IP control o

RS232 o

Sample Rate digital In 192 kHz / 24-bit

USB Audio (front) o (rear)

USB type B input for PC (rear) Sample Rate USB type B In o up to DSD11.2

Variable Out (Cinch) 1

Network

App control AMP/CD via Network Player o

Bluetooth on / off mode o

DSD Audio Streaming up to DSD5.6

Gapless playback o (FLAC, WAV, DSD)

Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 o / o / o / o

Lossy formats MP3 / WMA / AAC o / o / o

Remote APP: iDevice / Android o / o

Wi-Fi on / off mode o

Wi-Fi / Wired LAN 2.4GHz, 5GHz / o

Others

Display: Dimmer / Off o / o

Marantz Musical Mastering o

Marantz Musical Mastering Conversion o

Marantz Musical Mastering Stream o

Selectable filter: CD / SA-CD / DAC-Mode o/ - / o(PCM Only)

Separated rectifier circuit for analogue and digital circuitry o

Playback

Program Play (CD / SA-CD) 25 / -

Random Play o

Repeat o

Specifications

Channel Separation -

Channel Separation (SA) -

D/A Conversion MMM

DAC IC MMM

Digital Filter MMM

Dynamic Range 98 dB

Dynamic Range (SA) 109dB

Frequency Response 2 Hz - 20 kHz

Frequency Response (Cust.) 2 Hz - 20 kHz

Headphone amp HDAM SA3

Low Pass Filter stage HDAM

Mechanism SACDM-3L

Noise Shaper MMM

Output buffer HDAM SA3

Signal to Noise Ratio 104dB

Signal to Noise Ratio (SA) 112dB

Total Harmonic Distortion 0,000015

Total Harmonic Distortion (SA) 0.0008%
