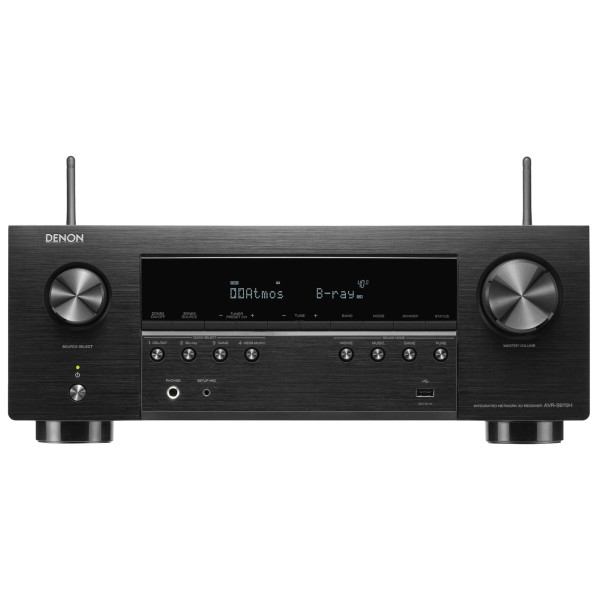

Denon AVR-S970H Teknik Özellikleri

40988365658Multichannel Surround

DTS HD Master, DTS:X, DTS:X Pro

Yes, Yes, No

DTS Neo:X, DTS Neural:X

No, Yes

DTS Virtual:X

Yes

Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music

Yes, Yes, Yes, Yes

Dolby ProLogic Ilz, Dolby Surround

No, Yes

Multichannel Stereo

Yes

Max. Number of Processing (Pre-Amp) Channels

7.1

Sound Enhancements

Discrete Power Amplifier

Yes

Pure Direct

Yes

Audyssey

MultEQ

Audyssey Dynamic EQ, Dynamic Volume

Yes, Yes

Compressed Audio Restorer

Yes

Network

Media Server

Yes

HEOS Wireless Multi-Room Technology

Yes

Alexa / Google Voice Assistant / Apple HomePod

Yes, Yes, Yes

Lossy Formats: MP3, WMA, AAC

Yes, Yes, Yes

Lossless Formats: FLAC, ALAC, WAV

Yes, Yes, Yes

Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit)

Yes, Yes, Yes

DSD Audio Streaming

Yes (2.8/5.6MHz)

AirPlay 2

Yes

TuneIn

Yes

Spotify Connect

Yes

Pandora

Yes

SiriusXM

Yes

Roon Tested

Yes

HEOS App Control

Yes

Compatible with Remote APP for Smart Phones

Denon 2016 AVR Remote

Ethernet Ports

Yes

Wi-Fi

Yes

Bluetooth

Yes

HDMI

HDMI Inputs: Back, Front

6, No

HDCP2.3 support

Yes

HDMI Outputs: Main, Zone

2 / No

HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB

Yes, Yes

HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR

Yes , Yes, Yes, Yes, Yes

ALLM (Auto Low Latency Mode) Pass-through for gaming

Yes

Variable Refresh Rate, Quick Frame Transport, Quick Media Switching

Yes, Yes, No

3D Signal Pass-through

Yes

8K Signal Pass-Through, Scaling, GUI Overlay

Yes, Yes, Yes

Audio Return Channel (ARC), Enhanced ARC

Yes, Yes

Auto LipSync

Yes

Multi-room CI

Multi-Room Zones

2

Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog

Yes (2ch), Yes (2ch), Yes, Yes

Zone Audio Output: Speaker, Pre-Out

Yes, No

IP Control, RS232 Control, Web Control, App Control

Yes, No, Yes, Yes

Remote In / Out

No, No

HDMI Diagnostics

Yes

Others

Auto Speaker Setup by Microphone

Audyssey MultEQ

Front Display

1-Line FLD

GUI Languages

3

Setup Assistent

Yes

Quick Select Plus, Quick Select

Yes, No

Variable Crossover

Yes

Optimized Bass Redirection

Yes

ECO Mode

Yes

Auto Power Off

Yes

Sleep Timer

Yes

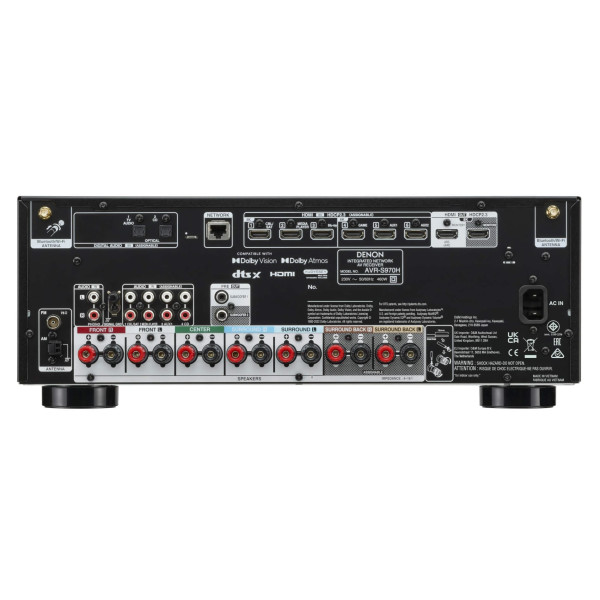

Inputs Outputs

HDMI In, Out

6, 2

Multi-Room Video Out: Video, HDMI

No, No

Analog In, Out

4, No

Phono (MM) In

Yes

Digital In: Optical, Coaxial

2, 1

Multi-Room Out: Analog, Digital

No, No

Multichannel Pre-out

Yes (0.2)

Subwoofer Out

2

Speaker Terminal: Gold-Plated Screw, Regular Screw

No, Yes

Number of Speaker Terminals

7

Multi-Room Speaker Terminal

Assignable

Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB

No, No, No, No, Yes

USB Audio, Made for iPod, Made for iPhone

Yes, No, No

AM/FM Tuner

Yes

Specifications

Number of Power Amps

7

Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)

90W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)

125W

Power Output (6 ohm, 1 kHz, 10% 1ch Drive)

185W

General

System Remote Control

RC-1253

Pre-Programmed, Learnable, LCD Display

No, No, No

Power Consumption in W

500

Power Consumption No-Sound (ECO On / Off) in W

35W/75W

Standby Consumption in W

0.1

CEC Standby Consumption in W

0.5

Network Standby Consumption in W

Less than 2.0

Maximum Dimensions

Antenna: Horizontal: (W x D x H) in Inches

Antenna: Vertical: (W x D x H) in Inches

W/O Antenna: (W x D x H) in Inches

17.1 x 13.4 x 6.6

( 17.1 x 13.4 x 9.3 )

【 17.1 x 13.0 x 6.6 】

Weight in LBS

21.0

Weight in LBS (Packaging)

25.408
