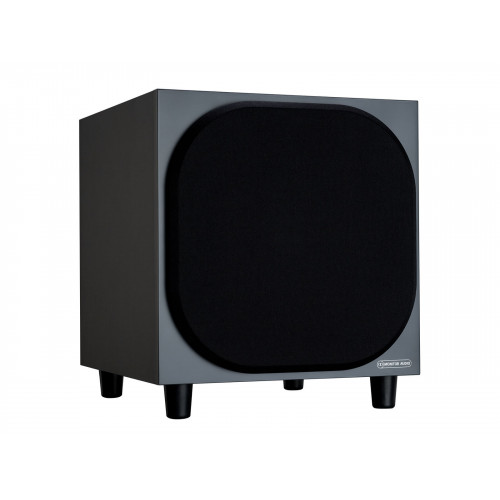

Monitor Audio Bronze W10 Aktif Subwoofer


System Format

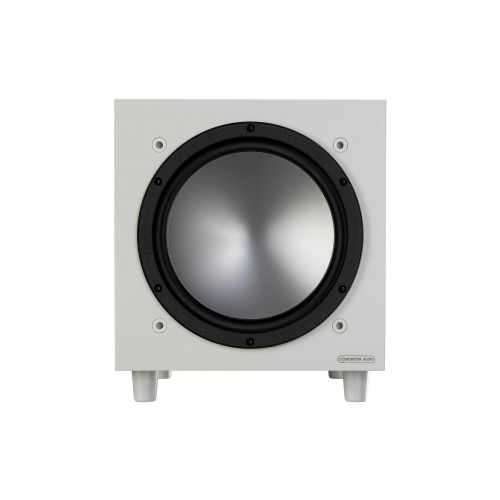

Long-throw 10" driver featuring ‘dished’ C-CAM cone. 10" flat panel ABR (Auxiliary Bass Radiator).

18 mm M.D.F. internally braced construction


Lower Frequency Limit

-3 dB @ 33 Hz / -10 dB @ 28 Hz (Free Field) Default preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room)


Upper Frequency Limit

-6 dB @ 150 Hz


Drive Unit Complement

1 x 250 mm (10") C-CAM subwoofer driver featuring a 2" long throw voice coil


Linear Driver Excursion

17 mm peak to peak


Amplifier Output

220 W


Amplifier Classification

Class D with high current Switch mode power supply (SMPSU)


Phase Control

0 Degrees & 180 Degree pure Invert


Low Pass Filter Alignment

4th order (24 dB/Octave), from 50 Hz to 120 Hz


Equalisation DSP

3 pre-set modes: Music, Movie, Impact


Auto Sensing

Line Level >3mV. Auto Standby feature after 20 mins

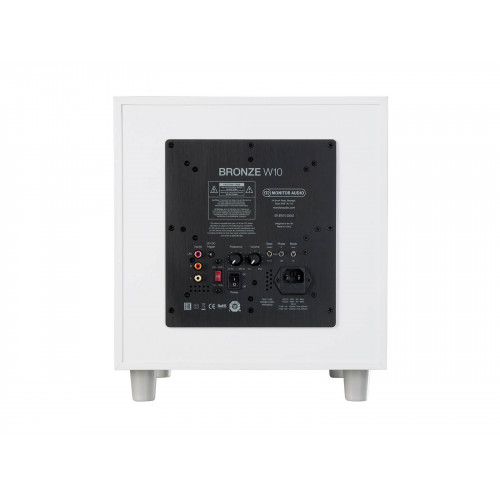

Audio Input/Outputs

LFE unbalanced input RCA

Stereo unbalanced inputs RCA


Input Impedance

20 kOhms input impedance


12 V Trigger

3.5 mm mono mini-jack. 6 V threshold


Electrical Certifications

CE / CB / ETL / Fcc / CCC / ErP (Energy saving compliant)


Mains Input Voltage

110 – 120 Vac 50 – 60 Hz / 220 – 240 Vac 50 – 60 Hz (Manually selected)


Power Consumption

Maximum 300 W, Standby <0.5 W (ErP compliance)


Fuse Type

20 mm T4AL 250 VAC


External Dimensions (Including Amp, Drivers and Terminals (H x W x D))

321 x 321 x 364 mm (125/8 x 125/8 x 145/16")


External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D))

366.5 x 321 x 364 mm (147/16 x 125/8 x 145/16")


Weight (unpacked)

13.4 kg (29 lb 9 oz)

Monitor Audio Bronze W10 Aktif Subwoofer

  • Marka: Monitor Audio
  • Ürün Kodu: Monitor Audio Bronze W10
  • Stok Durumu: Stokta var
  • 925,00€
