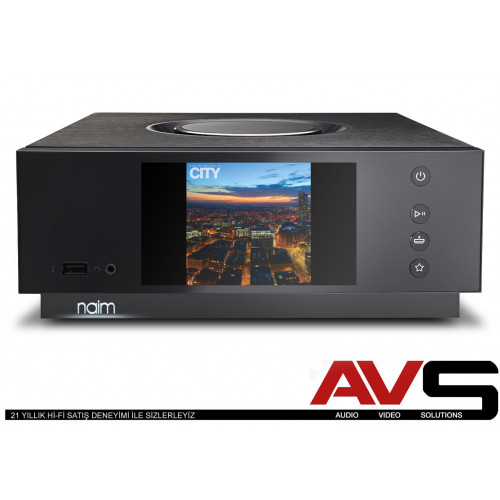

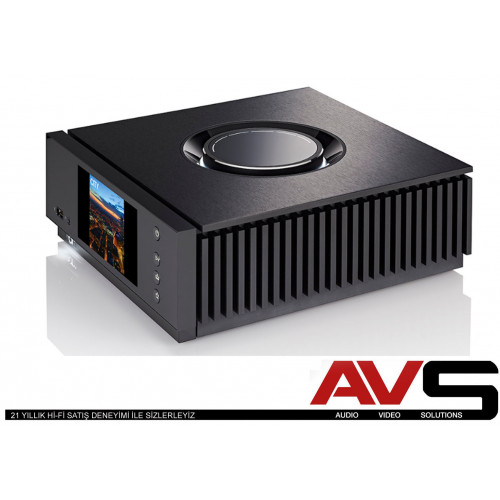

Naim Uniti Atom HDMI Streaming Amplifikatör

ÖZELLİKLER

Technical Specifications

Audio Format :

WAV - up to 32bits/384kHz

FLAC and AIFF - up to 24bit/384kHz

ALAC (Apple Lossless) - up to 24bit/384kHz

MP3 - up to 48kHz, 320kbit (16 bit)

AAC - up to 48kHz, 320kbit (16 bit)

OGG and WMA - up to 48kHz (16 bit)

DSD - 64 and 128Fs

M4A - up to 48kHz, 320kbit (16 bit)

Note: Gapless playback supported on all formats.

Product type : all in one player

Supported sampling rates :

USB : 44.1kHz - 384kHz (16 to 24bit)

S/PDIF : 32kHz - 192kHz (up to 24bit)

Physical Specifications

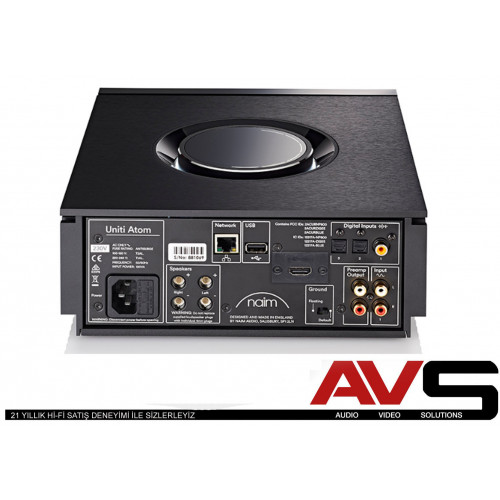

Analogue inputs :

1 x Stereo RCA pair

Analogue outputs :

1 x Stereo power amplifer

1 x RCA sub/pre output

Digital inputs :

2 x optical TOSLink (up to 24bit/96kHz)

1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs)

Headphone outputs : 1 x jack 3,5 mm

Other entries : HDMI Arc

Power Output :

40W per chanel into 8 ohm,@0,1 THD + N, class AB

USB ports : 2x USB 2.0 (Type A connector)

Streaming / Sources

WiFi :

Wi-Fi (802.11 b/g/n/ac) with internal antenna, integrated into the heat sink (patent GB2524815B)

Internet Radio Formats : Windows Media-formatted content, MP3, ACC, Ogg Vorbis streams and MMS

Internet Radio Provider : vTuner Premium 5*

Multi-Room :

Multiroom streaming (play several streamers in simultaneously) and its "Party Mode" (sync up to six Naim streamers), and control them via the "Focal & Naim" application

Network : Ethernet (10/100Mbps), Wi-Fi (802.11a/b/g/n/ac), BLE v4.2

Storage :

Store up to 20,000 tracks to a local USB connected storage device and serve to a network-connected player.

External portable SSD – max. 1TB

USB sticks – max. 128 GB.

Streaming : Apple AirPlay 2, Bluetooth, Chromecast, Internet Radio, Qobuz, Roon Ready, Spotify®Connect, TIDAL, UPnPTM

Control

App control : Focal & Naim App

Control system : Zigbee RF bi-directive remote control

Supported mobile operating system : Android, iOS

Updates : Update your system by wireless connection via the Focal & Naim application

User control product :

5" colour LCD screen, rotary volume control with proximity sensor and four buttons

Power Supply

Automatic standby time : User selectable: ON/OFF (up to 2h)

Power consumption in standby mode (deep sleep) : < 0.5W

Power consumption in standby mode : < 2W

Consumption in normal use : 90 W

Mains cable : PowerLine

Mains power supply : 115V or 230V, 50/60Hz

Design

Depth : 26.5 cm / 10.43 in

Height : 9.5 cm / 3.75 in

Width : 24.5 cm / 9.44 in

Weight : 7 kg / 15.43 lb

Accessories

Accessories :

Remote

Cables provided :

Power supply
