Marantz MODEL 30 Özellikleri

Aluminium extrusion heat sink o (Separate)

Balance / Bass / Treble / Loudness o / o / o / -

Channels 2

Current Feedback Topology o

Customised Components o

Digital in: USB-B / optical / coaxial / USB-A - / - / - / -

HDAM version SA3, SA2

High Grade Audio Components o

Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / - / o

Power Transformer: Toroidal / El SMPS

Symmetric PCB Layout o

General

Auto power off o

Carton Maximum Dimensions (W x D x H) in mm 534 x 522 x 255

Carton Weight (inc. product) in kg 17.6

Detachable Power Cable o

Maximum Dimensions (W x D x H) in mm 443 x 431 x 130

Metal Front Panel o

Power Consumption in W 130

Remote Control RC002PMND

Standby Consumption in W 0.2

System Remote Function o

Weight in kg 14.8

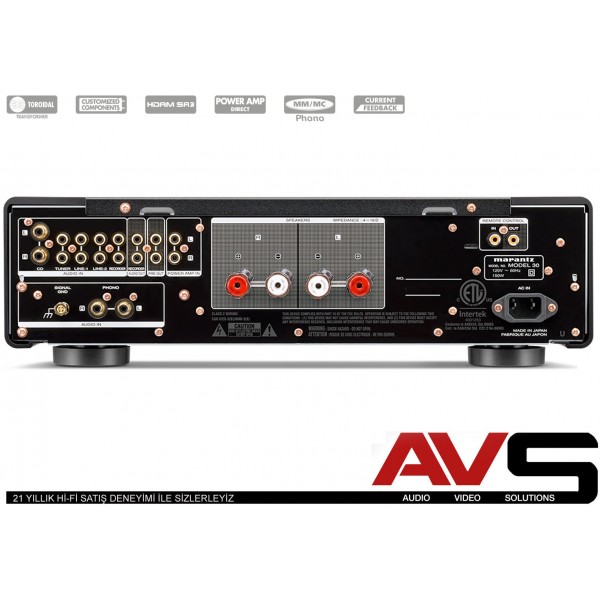

Inputs/Outputs

Audio Inputs 6

Audio Outputs 1

Balanced In / Out - / -

D-Bus o

Digital in: USB-B / optical / coaxial / USB-A - / - / - / -

Floating Control Bus (3.5 mm mono jack x 2) -

Gold Plated Cinch o

HDMI: inputs / outputs -

Headphone Gain Control (low / mid / high) -

Headphone Out o

Number of terminals 2

Phono Input: MM / MC o / o

Power Amp Direct IN o

Pre-out / Main-in o / -

Speaker A / B -

Speaker Terminals Marantz SPKT-100+

Others

5mm aluminium top plate -

BI-AMP and Multichannel option -

Double Layer Bottom Plate o

Input buffer amp (all inputs / CD only) - / -

Linear Drive Power Supply o (pre-amplifier stage)

Liniear volume control o

Low noise LCD display -

Low Noise OELD display o

Marantz Musical Digital Filtering -

Power Amp direct -

Shottky diodes o

Source Direct -

System block shielding: copper / metal / none o / - / -

Specifications

Damping Factor 500

Frequency Response 5 Hz - 50kHz

Input Sensitivity: Balanced High level -

Input Sensitivity: High level 220 mV / 13 kohm

Input Sensitivity: MC 250

Input Sensitivity: MM 2.3 mV / 39 kohm

Input Sensitivity: Power Amp Direct IN -

Power Output (8 / 4 Ohm RMS) 100 W / 200 W

Signal to Noise Ratio: High level 107 dB(2V input/Rated output)

Signal to Noise Ratio: MM / MC 88 / 75 dB

Signal to Noise Ratio: Power Amp Direct IN -

Total Harmonic Distortion 0.005%
